1、靈敏度高、反應迅速
2、電阻值和B值精度高、一致性互換性好
3、采用雙層密封工藝，具有良好的絕緣密封性和抗機械碰撞、抗折彎能力、穩定性好、可靠性高
|

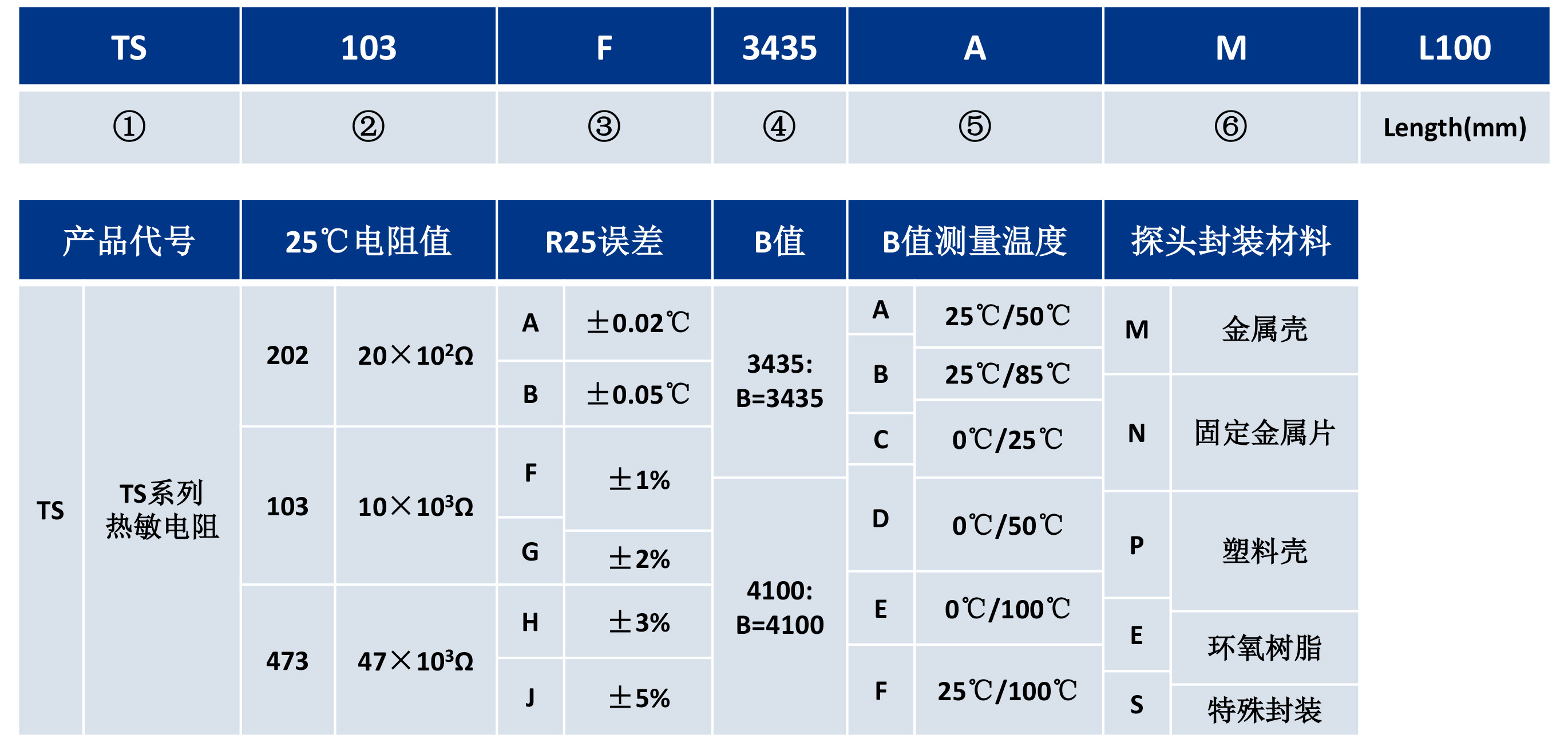

型號 |
標稱值 (KΩ) |
B值(K) 25/50℃ |
額定功率 （mW） |
耗散系數 (mW/℃) |
熱時間常數 (S) |
|
TS502□3274A |
5.0 |
3274 ±1% |
10-20 |
2-4 |
5-20 |
|
TS502□3435B |
5.0 |
3435 ±1% |
|||
|
TS502□3470A |
5.0 |
3470 ±1% |
|||
|
TS502□3950A |
5.0 |
3950 ±1% |
|||
|
TS103□3274A |
10.0 |
3274 ±1% |
|||
|
TS103□3435B |
10.0 |
3435 ±1% |
|||
|
TS103□3470A |
10.0 |
3470 ±1% |
|||
|
TS103□3950A |
10.0 |
3950 ±1% |
|||
|
TS103□4100A |
10.0 |
4100 ±1% |
|||
|
TS153□3950A |
15.0 |
3950 ±1% |
|||
|
TS153□4100A |
15.0 |
4100 ±1% |
|||
|
TS203□3950A |
20.0 |
3950 ±1% |
|||
|
TS203□4100A |
20.0 |
4100 ±1% |
|||
|
TS223□4200A |
22.0 |
4200 ±1% |
|||
|
TS403□3928A |
40.27 |
3928 ±1% |
|||
|
TS503□3950A |
50.0 |
3950 ±1% |
|||
|
TS503□4100A |
50.0 |
4100 ±1% |
|||
|
TS104□3950A |
100 |
3950 ±1% |
|||
|
TS104□4100A |
100 |
4100 ±1% |
|||
|
TS104□4400A |
100 |
4400 ±1% |
◆可根據客戶要求定做特殊規格。
|
常規產品電性能性能參數 |
B25/50
3270
3380
3470
3600
3950
3950
4000
4100
4300
B25/85
3320
3435
3530
3630
3990
3990
4050
4160
4410
-30℃
52.84
111.3
127.5
133.6250
181.7
908.3
1790
1686.
2056.7
-25℃
41.19
86.39
97.10
101.6000
133.5
667.6
1321
1260
1502.2
-20℃
32.44
67.74
74.80
77.9250
98.99
494.4
984.7
954.7
1107.0
-15℃
25.65
53.39
58.08
60.2925
74.06
370.3
740.8
726.0
822.68
-10℃
20.48
42.45
45.44
47.0150
56.06
280.3
562.3
555.1
616.42
-5℃
16.43
33.89
35.82
36.9450
42.81
214.1
430.5
430.7
465.45
0℃
13.29
27.28
28.46
29.2350
32.96
164.8
332.3
337.2
352.4
5℃
10.80
22.05
22.78
23.3050
25.57
127.9
257.5
259.4
270.0
10℃
8.839
17.96
18.36
18.6850
20.00
99.98
201.1
203.3
208.3
15℃
7.266
14.68
14.90
15.0875
15.76
78.79
158.2
160.5
161.9
20℃
6.013
12.09
12.17
12.2450
12.51
62.55
125.4
120.7
126.7
25℃
5.000
10.00
10.00
10.0000
10.00
50.00
100.0
100.0
100.0
30℃
4.179
8.313
8.264
7.9340
8.048
40.24
80.29
79.6
78.35
35℃
3.508
6.941
6.890
6.7738
6.517
32.58
64.87
63.02
62.37
40℃
2.962
5.828
5.738
5.6230
5.321
26.56
57.72
51.39
49.94
45℃
2.510
4.912
4.810
4.6913
4.356
21.78
43.10
42.06
40.22
50℃
2.138
4.161
4.064
3.9265
3.588
17.94
35.42
34.51
32.56
55℃
1.826
3.537
3.448
3.3043
2.972
14.86
29.26
28.06
26.40
60℃
1.568
3.021
2.934
2.7928
2.467
12.38
24.30
23.16
21.53
65℃
1.351
2.589
2.504
2.3726
2.073
10.36
20.27
19.38
17.69
70℃
1.169
2.229
2.146
2.0210
1.734
8.717
16.99
15.93
14.62
75℃
1.014
1.924
1.845
1.7288
1.473
7.364
14.31
13.37
12.10
80℃
0.8838
1.669
1.592
1.4858
1.250
6.248
12.10
11.14
10.05
85℃
0.7725
1.451
1.378
1.2818
1.065
5.324
10.27
9.371
8.376
90℃
0.6774
1.226
1.195
1.1088
0.911
4.555
8.758
7.891
7.004
95℃
0.5963
1.108
1.039
0.9640
0.7824
3.912
7.459
6.687
5.894
100℃
0.5267
0.9735
0.966
0.8377
0.6744
3.372
6.438
5.699
4.978
105℃
0.4656
0.8574
0.7949
0.7344
0.5834
2.917
5.550
4.875
4.215
110℃
0.4130
0.7579
0.7028
0.6429
0.5066
2.533
4.801
4.195
3.580
